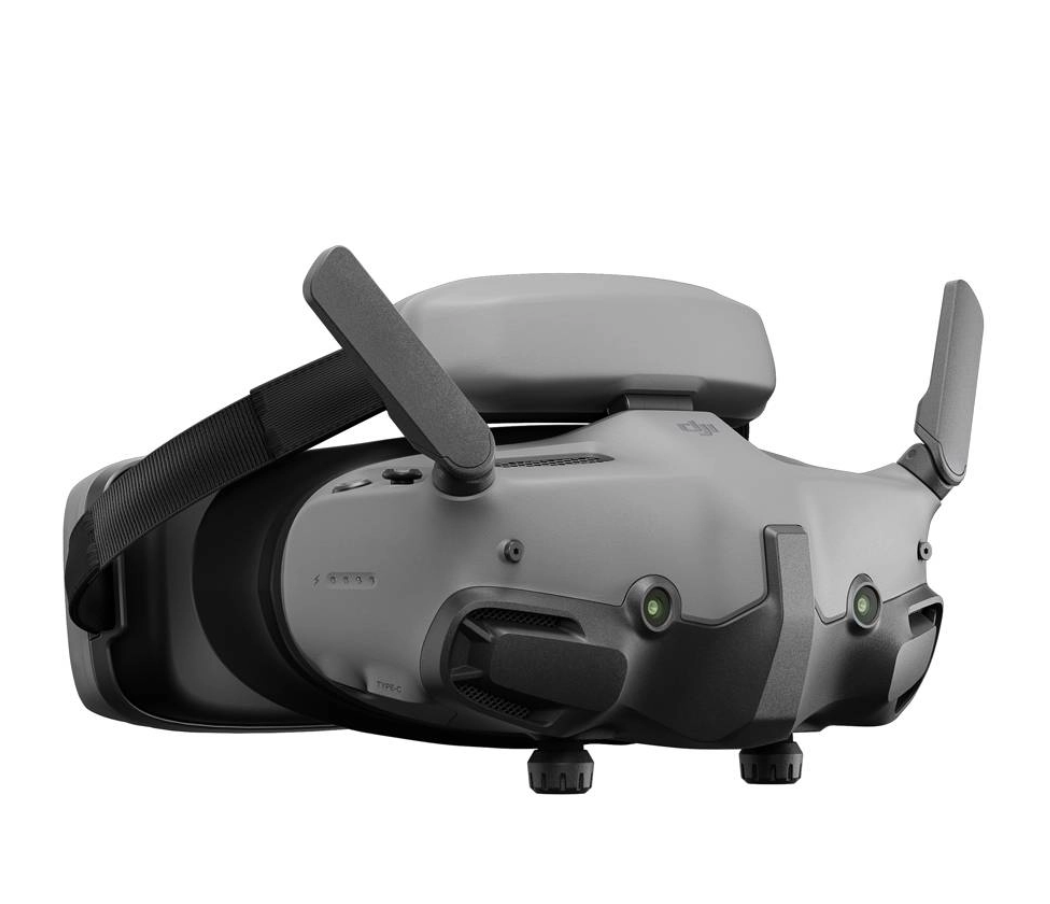

DJI Goggles 3

GOGGLES

• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Supported SD Cards: microSD (up to 512 GB)
• Diopter Adjustment Range: -6.0 D to +2.0 D
• Weight: Approx. 470 g (battery included)
• Resolution (single screen): 1920×1080
• Screen Size (single screen): 0.49 inch
• Video Recording Format: MOV
• Power Input: Built-in battery
• Refresh Rate: Up to 100 Hz
• FOV (single screen): 44°
• Real View FOV: 44°
• Model: TKGS3
• Supported Video and Audio Playback Formats
  • 3D Video: Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU)
  • Panoramic Video: Spherical 2D panoramic videos
  • Video coding formats: H.264, H.265
  • Max Video Specification: 4K/60fps
  • Audio formats: AAC, PCM
• Dimensions (L×W×H)
  • With antennas folded: 170×109×112 mm (L×W×H)
  • With antennas unfolded: 205×109×112 mm (L×W×H)
  • Interpupillary Distance Range: 56-72 mm

VIDEO TRANSMISSION

• Max Transmisssion Distance:13 km (FCC); 10 km (CE/SRRC/MIC)
• Max Video Bitrate: 60 Mbps
• Latency with DJI Avata 2:
  • 1080p/100fps video transmission quality: latency down to 24 ms
  • 1080p/60fps video transmission quality: latency down to 40 ms
• Transmitter Power (EIRP): 2.4 GHz
  • < 20 dBm (CE/SRRC/MIC)
  • < 33 dBm (FCC)
• 5.1 GHz
  • < 23 dBm (CE)
• 5.8 GHz
  • < 30 dBm (SRRC)
  • < 33 dBm (FCC)
  • < 14 dBm (CE)
• Operating Frequency
  • 2.4000-2.4835 GHz
  • 5.150-5.250 GHz
  • 5.725-5.850 GHz

BATTERY

• Max Charging Power: 20 W (charging when powered off)
• Charging Temperature: 0° C to 50° C (32° F to 122° F)
• Dimensions: 121×65×52.5 mm (L×W×H)
• Chemical System: LiNiMnCoO2
• Runtime: Approx. 3 hours
• Capacity: 3000 mAh
• Voltage: 5.6-8.4 V
• Energy: 21.6 Wh
• Category: Li-ion

WIFI

• Protocol: 802.11 a/b/g/n/ac
• Transmitter Power (EIRP): 2.4 GHz
  • < 20 dBm (FCC/CE/SRRC/MIC)
• 5.1 GHz
  • < 20 dBm (FCC/CE/MIC)
• 5.8 GHz
  • < 20 dBm (FCC/SRRC)
  • < 14 dBm (CE)
• Operating Frequency
  • 2.4000-2.4835 GHz
  • 5.170-5.250 GHz
  • 5.725-5.850 GHz

BLUETOOTH

• Operating Frequency: 2.400-2.4835 GHz
• Transmitter Power (EIRP): < 10 dBm
• Protocol: Bluetooth 5.0

GFSK

• Operating Frequency: 2.4000-2.4835 GHz
• Transmitter Power (EIRP)
  • < 20 dBm (CE/SRRC/MIC)
  • < 26 dBm (FCC)

• Compatibility:
  • DJI O4 Air Unit (If released – historically there’s a new Air Unit for each DJI Goggle generation)
  • DJI Avata 2

• 1x DJI Goggles 3 -2.0D Corrective Lenses (Pair)
• 1x DJI Goggles 3 Additional Forehead Pad
• 1x DJI Goggles 3 Foam Padding
• 1x USB-C OTG Cable
• 1x DJI Goggles 3
